BENTANG BAHARI
DP-2 Cable Laying Vessel
Southeast Asia's Submarine Infrastructure Partner
Type of Services
Cable Laying Services
We install fiber optic submarine cables across deep-water routes. Each project is planned around the cable specification, seabed condition, and route profile, using DP-2 positioning and a Royal IHC Multi-depth Fibre Optic Cable Plough for precise burial up to 3 meters deep.
Cable Repair Services
We locate and repair fiber optic cable faults from anchor strikes to seabed movement using our Working Class ROV CT-2, rated to 3,000 meters, with fast response to minimize downtime.
Why Should You Choose Bentang Bahari?
Key Specifications
Every system on board Bentang Bahari is built around one objective: precision. From DP-2 positioning to a dedicated cable splicing area, the vessel is configured for projects where margin for error is minimal.
DP Class
DP-2
Cable Load Capacity
2,400 ton
Trenching Depth
Up to 2.2 m
ROV Max Depth
3,000 m
Bollard Pull
Up to 88 ton
Classification
DNV

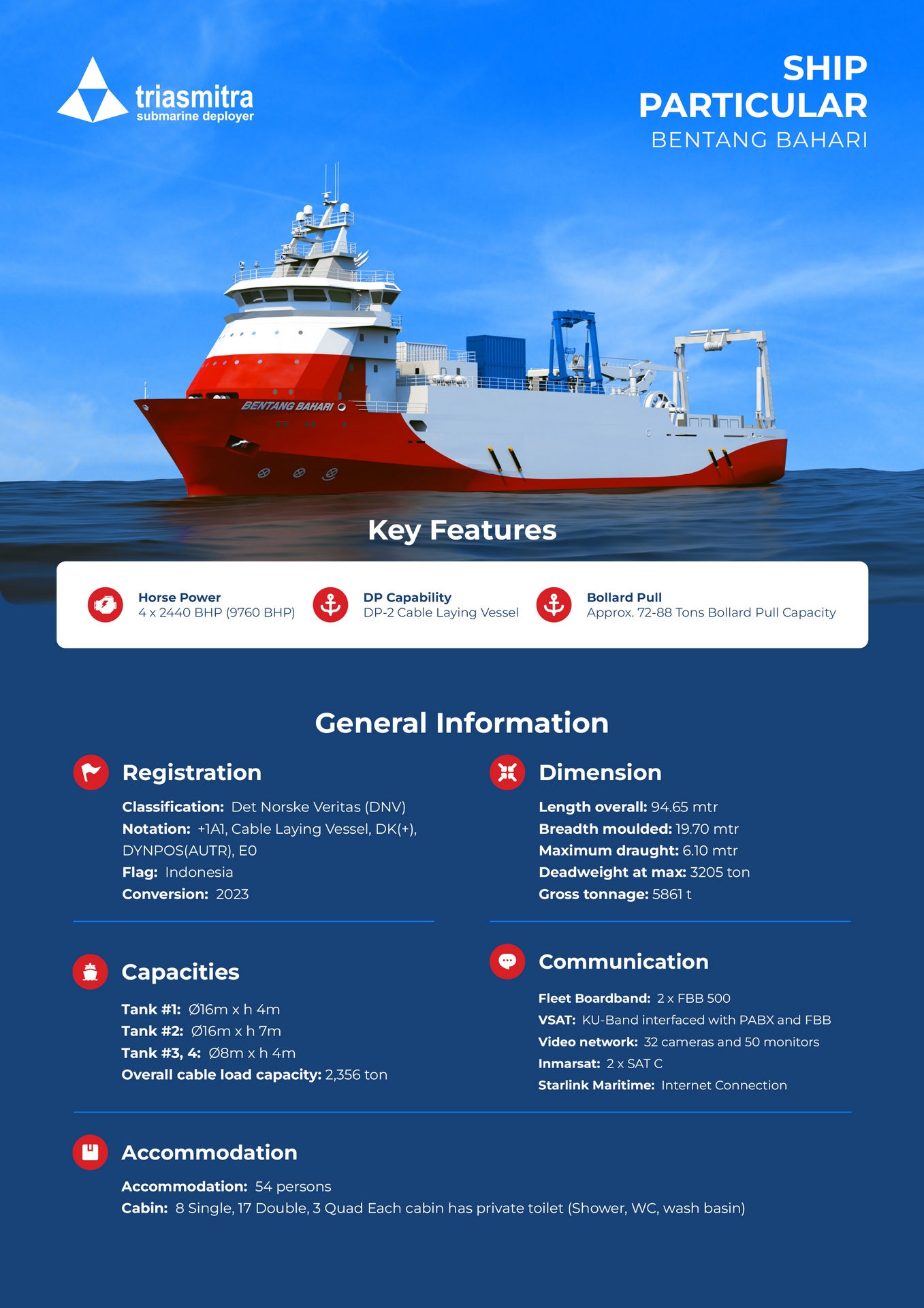

Registrations
- NameBentang Bahari
- Type of VesselDP2 Cable Laying Vessel
- ClassificationDet Norske Veritas (DNV)
- Notation+1A1, Cable Laying Vessel, DK(+), DYNPOS(AUTR), E0
- FlagIndonesia
- Port of RegistryBatam
- CallsignYDVZ2
- IMO No.9276391
- Conversion2025
Dimension
- Length overall94.65 m
- Breadth moulded19.70 m
- Maximum draught6.10 m
- Deadweight at max3,205 ton
- Gross tonnage5,861 ton
Capacities
- Tank #1Ø16m x h 1.2m
- Tank #2Ø16m x h 4.2m
- Tank #3, 4Ø8m x h 4m
- Overall cable load capacity2,356 ton
Essential Traits of Bentang Bahari
Full DP Capability – DP2
Our vessel's full DP-2 system ensures precise cable laying operations, eliminating reliance on external factors and guaranteeing project success.
Internationally Certified
Bentang Bahari is designed with high standards of safety and efficiency. Certified by an international organization called Det Norske Veritas (DNV), this ensures that Bentang Bahari maintains the highest quality, undergo a rigorous testing process, and consistently perform well in all conditions.
High Technology Equipment
Bentang Bahari is equipped with the latest high-tech cable laying equipment such as ROV CT-2, Plough, A-Frame, Linear Cable Engine, Cable Drum Engine, designed to increase precision, speed and efficiency in subsea cable deployment.
Well Trained & Experienced Crew
Supported by experienced and well-trained experts and crew for cable laying, this combination ensures that every operation carried out has high quality and safety standards.
Dedicated Cable Splicing Area
Equipped with a specialized workspace, our vessel ensures precise cable splicing operations, mitigating risks and ensuring connectivity integrity.
Bollard Pull Capability
Equipped with up to 88 tons of bollard pull capacity to ensure stability and strength when towing heavy loads or laying cables in deep-sea operations.
Southeast Asia Coverage Area
Operating across Southeast Asia's submarine cable corridors: Indonesia, Singapore, and neighboring regional routes
